Floorplan - 2016 Forest River RV Wildwood 23RBS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 22
+22- Our Price: $24,995
Payments From:
$156 /mo.
-
26ft long
-
6,030 lbs
-
Sleeps 4
-
2 slides
-
U Shaped DinetteKitchen Island

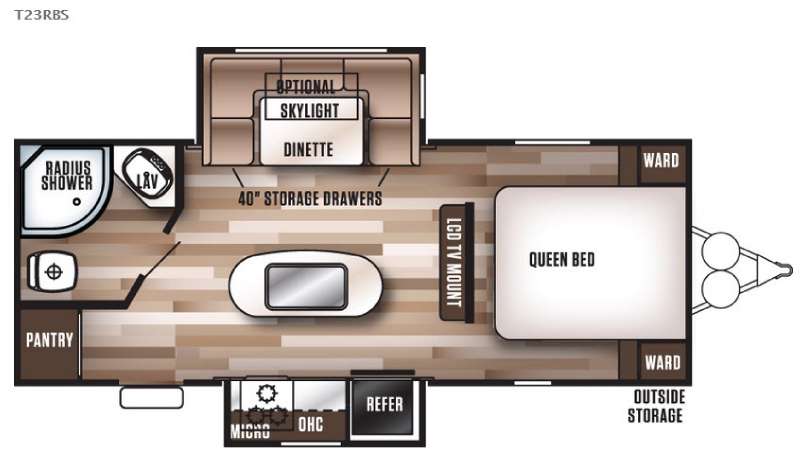

23RBS Floorplan
23RBS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 2 |
| Length | 26 ft 5 in | Ext Width | 8 ft |
| Ext Height | 11 ft 3 in | Int Height | 6 ft 8 in |
| Hitch Weight | 898 lbs | Dry Weight | 6030 lbs |
| Cargo Capacity | 1830 lbs | Fresh Water Capacity | 61 gals |
| Grey Water Capacity | 28 gals | Black Water Capacity | 32 gals |
| Furnace BTU | 25000 btu |
Description
Description
As you enter the Wildwood 23RBS travel trailer by Forest River you will immediately notice how open and spacious this trailer is with two slides and a kitchen island.
To the left of the entrance there is a pantry. To the right of the entrance you will find a slide with a three burner range, microwave, and refrigerator. Across from the slide, there is another slide with a u-dinette and 40" storage drawers under the seats. In the middle of the kitchen you will find an island with a large kitchen sink. Before you enter into the front bedroom be sure to notice the LCD TV mount.
The front bedroom has a queen bed with wardrobes on either side of the bed.
Located in the rear of the trailer is the bathroom. Inside the bathroom there is a sink, radius shower, and toilet, plus much more!
To the left of the entrance there is a pantry. To the right of the entrance you will find a slide with a three burner range, microwave, and refrigerator. Across from the slide, there is another slide with a u-dinette and 40" storage drawers under the seats. In the middle of the kitchen you will find an island with a large kitchen sink. Before you enter into the front bedroom be sure to notice the LCD TV mount.
The front bedroom has a queen bed with wardrobes on either side of the bed.
Located in the rear of the trailer is the bathroom. Inside the bathroom there is a sink, radius shower, and toilet, plus much more!
Features
Features
Standard Features (2016)
East Region
Construction and Exterior
Construction and Exterior
- Full walk on one-piece seamless Superflex® roof w/ 12 year warranty
- Extra large full pass through storage (per floorplan)
- 5/8" Tongue and Groove Plywood Floor
- Cold crack and mildew resistant vinyl patio awning
- Safety glass windows
- Steel framed 30″ smooth radius fiberglass main entry door
- Powder coated I-beam frame
- Cambered chassis
- Enclosed fresh water tank in a heated compartment
- 16 gal per hour Gas/Electric quick recovery DSI water heater
- Water heater by-pass
- Nitrogen filled tires
- 2″ wall construction 16″ (or less) on center
- R-7 fiberglass insulation throughout
- 13 ply cross micro-laminated beam header above slide outs
- Triple seal slide outs
- Electric slide out systems (flush floor)
- Swing arm entry assist handle
- Two marine grade exterior speakers
- Electric front jacks (fifth wheels)
- Fiberglass front cap (fifth wheels)
- New Aerodynamic Front Radius
Kitchen
- Dometic® double door refrigerator (2 yr. warranty)
- High rise faucet
- Residential style sink
- Stainless steel finish microwave with carousel
- 3-Burner, high output range with oven (2 yr. warranty)
- Stainless steel finish range hood w/ 12V exhaust fan and light
- One piece Beauflor® vinyl flooring
- 27" Tall Overhead Kitchen Cabinet
- Wood Drawers w/Furniture-Grade Plywood Slides
- Knife rack (behind cooktop)
- Shelving in overhead cabinets in Kitchen
- Central switch location for command center
- Brushed Stainless Finish Hardware
- Full extension ball bearing drawer guides
- Abundant cabinet storage
- Large Pots and Pans Drawer Under Dinette
- Full extension ball bearing drawer guides
Living Room
- 80″ interior height travel trailers (101″ fifth wheel models)
- Ducted 13,500 BTU roof air conditioner w/ quick cool
- Huge storage drawer under jiffy sofa
- Booth dinette w/ large drawer (most models) (U-shaped dinette, some models)
- Large dinette picture window
- Winegard® antenna with booster
- Standard FM stereo w/ CD/DVD and four cube speakers
- Patio door w/ vertical blinds (36BHBS, 37BHSS2Q, 38RLTS)
- Decorative wall light
- 25K BTU suburban forced air DSI furnace w/ digital thermostat (2 yr. warranty)
- In-floor ducted heat
- Booth Dinette w/Large Storage Drawer (Most Models) (U-Shaped Dinette, Some Models)
- Flip TV Mount (Most Models)
- Cable TV Hookup in Living Room and Bedroom
- Wall Switch Controls for Ceiling Lights at Key Locations
- Recliner or recliners included in one bedroom models
Bedroom
- Plush comforter and headboard
- Strut lifted storage area under bed (Master Bedroom)
- Bedside mirrored wardrobes w/ shelf Above Bed
- Bedside 110V power outlets (2)
- Solid bedroom privacy doors (most models)
- Storage shelf above bed
- Increased Space at the Foot of the Bed (Most Models)
- Bedside Hamper Access (most Models)
Bathroom
- 12V Power Bath Roof Exhaust Vent
- Wooden medicine cabinet w/ mirrored door
- Foot flush toilet
- Tooth brush holder and towel ring
- Vinyl tub surround (Neo-Angle Showers Have an Enclosure) (Select Floorplans)
- One-Piece Slip-Resistant Beauflor® Vinyl Flooring
Security and Safety
- LED docking lights (fifth wheels)
- LP leak detector
- Smoke detector
- Carbon monoxide detector
- Fire extinguisher
- Hitch light (travel trailers)
- Welded heavy duty safety chains (travel trailers)
- Electric brakes (all wheels)
- GFI receptacles
- ANSI 119.2 certified
- Meets all national highway administration specifications
- RVIA Approved Product
- Beauflor® Vinyl Floor with "SafetyGrip"
- Undermount Kitchen Sink
Options
- Stabilizer jacks [travel trailer (4) or fifth wheel (2)]
- Skylight over tub
- 30 lb LP bottles w/ cover and auto change over (travel trailers)
- 12V Power Four Corner Jacks
- Power Awning with Colored LED Awning Light with Remote
- 15,000 BTU ducted air w/ quick cool
- Contact your Wildwood dealer for a complete list of options.
- Remote Control for Slide Outs and Power Awning
- LG Solid Surface (Particle-Board Free) Kitchen Counter Tops
- Undermount Sink
- Electric Front Jacks
- LED Interior Lights
- Radial Tires (Mandatory Option)
Northwest Region
Construction and Exterior
- One-piece 5/8" DynaSpan® flooring with a minimum 25 year warranty
- Dicor Diflex II™ TPO roofing with limited 12 year warranty
- Extra large full pass through storage (per floorplan)
- Cold crack and mildew resistant vinyl patio awning
- Safety glass windows
- Metal framed 30" smooth radius corner fiberglass main entry door
- Cambered chassis
- Enclosed fresh water tank in a heated compartment
- 16-gal. per hour Gas/Electric quick recovery DSI water heater
- Water heater by-pass
- 2" wall construction, 16" (or less) on center
- R-7 fiberglass insulation throughout
- 13 ply cross micro-laminted beam header above slide out
- Triple seal slide out system
- Electric slide out systems (flush floor)
- Swing arm entry assist handle
- Two marine grade exterior speakers
- Electric front jacks (fifth wheels)
- Aerodynamic front radius
- Smooth aluminum front cap
- Dometic® double door refrigerator (2 yr. warranty)
- High rise faucet
- Undermount style sink
- Stainless steel finish microwave with carousel
- 3-Burner, high output range with oven (2 yr. warranty) stainless steel finish on door
- Stainless steel finish range hood with 12-volt exhaust fan and light
- One-piece Beauflor® vinyl flooring
- Taller overhead cabinets (kit)
- Wood drawers with furniture-grade plywood sides
- Full extension ball bearing drawer guides
- Knife rack (behind cook top)
- Shelving in overhead cabinets in kitchen
- Central switch location for command center
- Brushed stainless finish hardware
- Abundant cabinet storage
- Large pots and pans drawer under dinette
Living Room
- Recliner or recliners included in one-bedroom models
- 80" interior height in travel trailers
- Ducted 13,500 BTU roof air conditioner with quick cool
- Huge storage drawer under Jiffy Sofa
- Booth dinette with large storage drawer (most models) (U-shaped dinette, some models)
- Large dinette picture window
- Winegard® antenna with booster
- Standard FM stereo with CD/DVD and four cube speakers
- Patio door with vertical blinds (36BHBS, 37BHSS2Q, 38RLTS)
- Decorative wall light
- 25K BTU Suburban® forced air DSI furnace with digital thermostat (2 yr. warranty)
- In-floor ducted heat
- Flip TV mount (most models)
- Cable TV hookup living room and bedroom
- Wall switch controls for ceiling lights at key locations
Bedroom
- Plush comforter and headboard
- Strut lifted storage area under bed (master bedroom)
- Bedside mirrored wardrobes with shelf above bed
- Bedside 110-volt power outlets (2)
- Increased space at the foot of the bed (most models)
- Solid bedroom privacy doors (most models)
- Storage shelf above bed
- Bedside hamper access (most models)
Bathroom
- 12-volt power bath roof exhaust vent
- Wooden medicine cabinet with mirrored door
- Foot flush toilet
- Tooth brush holder and towel ring
- Vinyl tub surround (neo-angle showers have an enclosure) (select floorplans)
- One-piece slip-resistant Beauflor® vinyl flooring
- LP leak detector
- Smoke detector
- Carbon monoxide detector
- Fire extinguisher
- Hitch light (travel trailers)
- Welded heavy duty safety chains (travel trailers)
- Electric brakes (all wheels)
- GFI receptacles
- ANSI 119.2 certified
- Meets all National Highway Administration specifications
- RVIA approved product
- Beauflor® vinyl flooring with "SafetyGrip
- Undermount kitchen sink
Options
- Stabilizer jacks (4)
- Skylight over tub
- 30-lb. LP bottles with cover and auto change over (travel trailers)
- 12V power four corner stabilizer jacks
- Power awning with LED light
- 15,000 BTU ducted air with quick cool
- Remote control for slide outs and power awning
- LG solid surface (particle board free) kitchen countertops
- Undermount sink
- Electric front jack tongue
- LED interior lights
- Radial tires (mandatory option)
West Region
- 6′ 8″ Interior Height
- Range w/ Oven In Place of Cooktop
- Double Door Refer
- Super Lube Axles
- Smooth Metal Front Wrap w/ Rock Guard
- Switch Control Center
- TV Antenna w/ Booster
- Microwave w/ Carousel
- Water Heater By-Pass (N/A w/ Tank less)
- Radial Tires
- 13.5 K BTU Ducted Air Conditioner
- Exterior Marine Speakers
- Designer Bedding
- Wood Plank Linoleum
- Decorative Curtain Rods w/ Pleated Shades in Living Area
- Retractable Awning
- Safety Glass Black Framed Slider Windows
- Radius Entry Door and Steps
- 30 amp Power Cord
- Pass Through Storage (most models)
- Full Extension Ball Bearing Drawer Guides
- 6gal Direct Spark Ignition Gas/Electric Water Heater
- Foot Flush Toilet
- DVD, MP3, CD, FM Stereo
- Self Adjusting Brakes
- 56gal Fresh Water Capacity
- Outside Kitchen (T32BHDS)
- Glass Shower Door (With Neo Angle Shower)
- Spare Tire & Carrier w/ Cover
- 15 K BTU Ducted Air Conditioning
- Stabilizer Jacks
- Power Tongue Jack
- Electric Awning
- Roof Ladder
- Skylight Over Tub
- Black Tank Flush
- 30 lb LP Bottles
- Cable / Satellite TV Ready
- 160W Solar Panel w/ Regulator
- Climate A Package (Radiant Foil & 12V Heat Strips)
- Storage Plus Door (Per Floor Plan)
- Tankless Water Heater
See us for a complete list of features and available options.
All features and specifications are subject to change.
